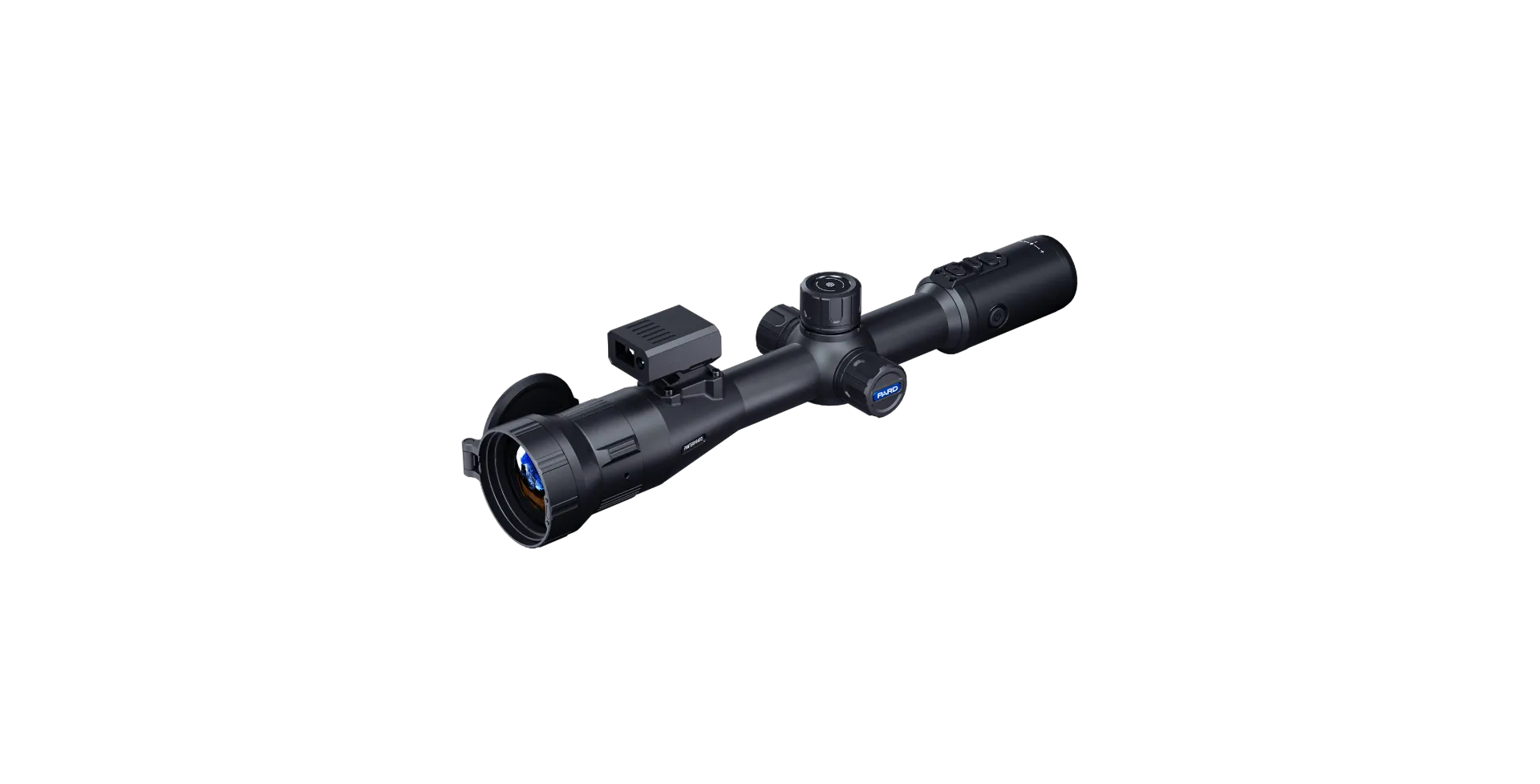

PARD Pantera 480 Q (50mm)
The PARD Pantera 480 Q is a thermal imaging scope built for users who want dependable mid- to longer-range thermal performance with integrated laser rangefinding in a practical rifle-mounted platform. With its 50mm objective lens and 3.3× optical magnification, it is designed for confident field use where both thermal detection and ranging support are important.
Built on the Pantera Q platform, this model combines a 480×360 thermal sensor, 12µm pixel pitch, a crisp circular display, and an integrated laser rangefinder capable of measuring to 1000m. It is a strong choice for users who want a capable thermal scope with reliable image quality, practical detection range, and added ranging support for demanding outdoor and shooting applications.
What’s in the box
PARD Pantera 480 Q Scope
3.7V 21700 rechargeable lithium-ion battery
Protective case
Type-C cable
30mm mount rings
Allen wrench
Lens cleaner
Rubber eye cup
User’s manual
After-sales card
-
Series
-
Model
-
SKU
-
Product Type
-
Sensor Resolution
-
Pixel Size
-
NETD
-
Frame Rate
-
Image Engine
-
Objective Lens
-
Magnification
-
Digital Zoom
-
Detection Range
-
Field of View
-
Focus Range
-
Display Type
-
Display Resolution
-
LRF Capability
-
Laser Rangefinder (LRF)
-
Ballistic Calculator
-
Eye Relief
-
Color Palettes
-
Recoil Rating
-
Gyroscope
-
E-Compass
-
Photo Resolution
-
Video Resolution
-
SD Card Storage Capacity
-
Supported App
-
Connectivity
-
Battery Type
-
IP Rating
-
Operating Temperature
-
Weight
-
Dimensions
-
Recoil-Activated Recording
-
Reticle Style
Hassle-free Warranty & Official After-sale support:
Night Vision Device: 2 Years
Thermal Imaging & Multispectral Device: 3 Years
Need Help? Contact Us Here
| Series | Pantera |
| Model | Pantera 480 Q |
| SKU | PA4Q-50LRF |
| Product Type | Thermal Scope |
| Sensor Resolution | 480 x 360 |
| Pixel Size | 12 µm |
| NETD | ≤ 18 mK |
| Frame Rate | 50 Hz |
| Image Engine | PARD IREA |
| Objective Lens | 50 mm |
| Magnification | 3.6x Optical |
| Digital Zoom | 2x / 4x / 6x / 8x |
| Detection Range | 1800m |
| Field of View | Horizontal 5.0° / Vertical 5.0° / Diagonal 7.0° |
| Focus Range | 5 m to ∞ |
| Display Type | OLED |
| Display Resolution | 1600 x 1200 |
| LRF Capability | Yes |
| Laser Rangefinder (LRF) | 1000m |
| Ballistic Calculator | Yes |
| Eye Relief | 100mm |
| Color Palettes | White Hot, Black Hot, Edge, Red Hot, Iron Hot, Sky |
| Recoil Rating | 6000 Joules |
| Gyroscope | Yes |
| E-Compass | Yes |
| Photo Resolution | 1600 x 1200 |
| Video Resolution | 1600 x 1200 |
| SD Card Storage Capacity | 128 GB (Max) |
| Supported App | PardVision2 |
| Connectivity | Wi-Fi, HDMI, USB-C |
| Battery Type | Removable 21700 mAh Li-ion |
| IP Rating | IP67 |
| Operating Temperature | -30 °C to +55 °C |
| Weight | 492 g |
| Dimensions | 295 mm × 82 mm × 70 mm |
| Recoil-Activated Recording | Yes |
| Reticle Style | 7 |
